Technical Parameters ：

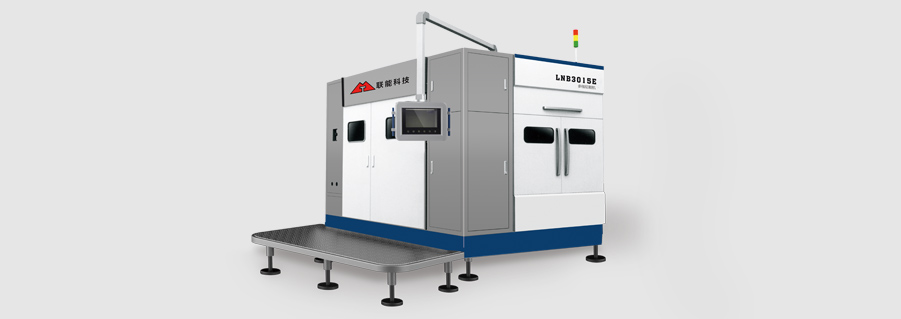

Model	LN-B3015E
Max work size（LXWXH）	300x150x150mm
Wire reciprocation speed	Max：1200m/min
Main shaft swing angel	0~±10°
Ork table elevation stroke	220mm
Slicing speed	0.1~999.9mm/h
Roller diameter	185mm±5mm
Air supply/consumption	0.4MPa/400L/min
Machine dimensions	2650x2050x2400mm
Stripping diameter	0.12-0.30mm
Sand bucket volume	75L
The thickness of the slice	0.2-5mm
Parallelism of slice	0.02mm
Air/gas consumption	0.2-0.7MPa/400L/min

Features ：

◆ the largest workpiece length from 270mm to 300mm, production efficiency increased by 10%. At the same time with a swing cutting function, suitable for sapphire and other high-hard and brittle materials processing.
◆ The use of large diameter, a small number of guide wheel wiring system, effectively increasing the service life of the guide wheel, reducing maintenance costs. The two work roll configurations increase the contact area of ​​the 50% wire with the roller to ensure a more stable slice operation and save on the maintenance costs of the work rolls.
◆ The device has a precision temperature control system, high precision slicing small warp quality and stability.
◆ with tension warning function, the use of load sensors to measure the supply line and winding side of the tension, cutting to ensure that the process of cutting a constant tension.
◆ with broken monitoring, alarm and host automatic emergency stop, cold cutting fluid temperature monitoring and automatic alarm function.
◆ This equipment can set the maximum line speed, acceleration / deceleration alignment time, reciprocating cycle table swing angle and speed, table moving speed and other process parameters, process adjustment convenient.
◆ The device can display the cutting line length, display and set the coolant temperature, display the cutting time and cutting the remaining time, the remaining line length, showing the current cutting and winding process.
◆ In view of sapphire high hardness is difficult to cut the characteristics of the design of a large angle, high frequency swing table, using servo motor drive, to achieve precise control of the swing angle and frequency.
